HIGH-SPEED HORIZONTAL WRAPPING MACHINE
IW-3000 Series
IW-3000 |
(STANDARD TYPE) |
IW-3000 B |
(BOX MOTION TYPE) |
IW-3000 BS |
(BACK SEAL TYPE) |
IW-3000 HS |
(HIGH-SPEED TYPE) |
IW-3000 W |
(WIDE TYPE) |
IW-3000 U |
(STAINLESS STEEL TYPE) |
IW-3000 T |
(TWIN TYPE) |

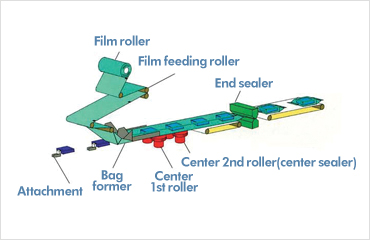

FILM ROUTING DIAGRAM
FEATURES
- High speed & Easy operation
- Easy to clean design
- Touch panel control system
- Provide production information
- Servo motor drive system
- Various data memory of 99 product
OPTION ITEMS
- Date printer
- Gas flusher
- Gusset device
- Hole punch device
- Auto splicer

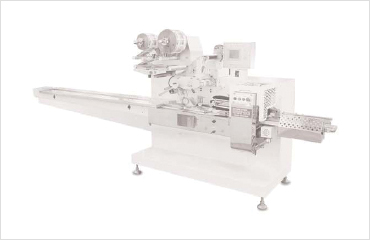

STANDARD SPECIFICATION(IW-3000)
Operating Speed |
25~300 packs/min |
Film Cut-off Length |
90~310mm |
Max. Film Width |
280mm(380mm) (580mm) |
Product Dimension |
Width 140mm |
Height 60mm |
Motor |
AC Servo motor |
Machine Dimensions |
400x1020x1515~1565(H)mm |

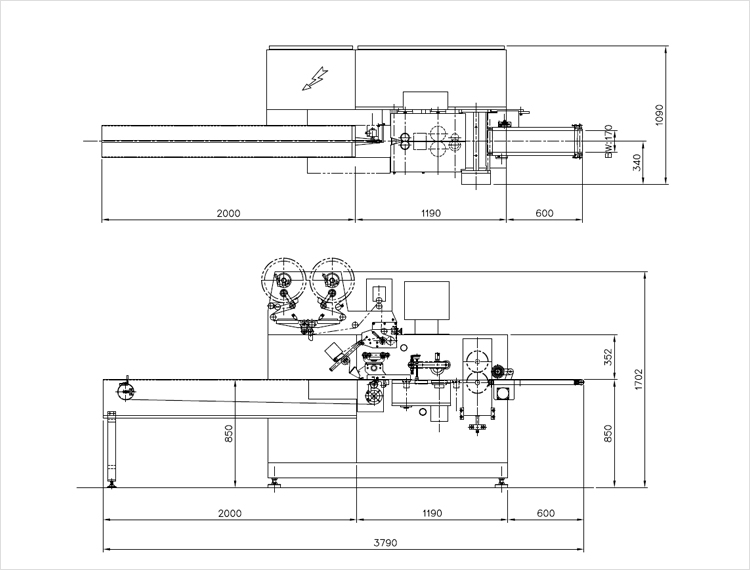

DIMENSIONAL DRAWING

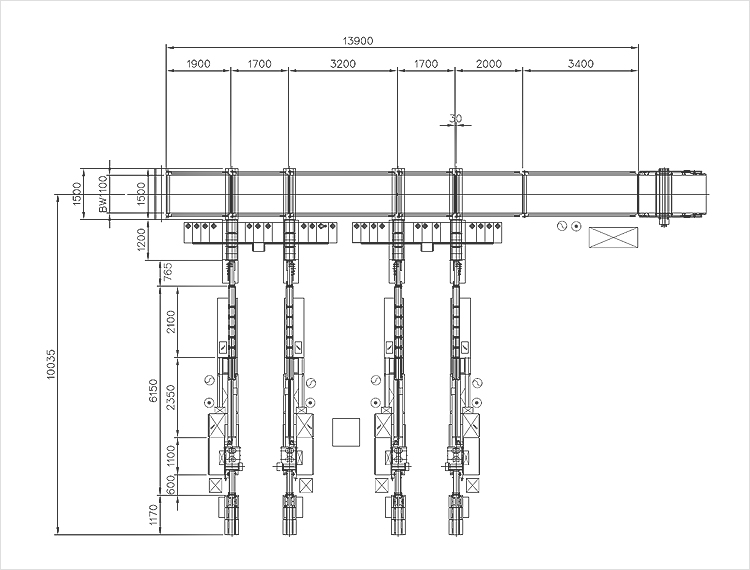

IW-3000 AUTO FEEDING & WRAPPING LINE LAYOUT

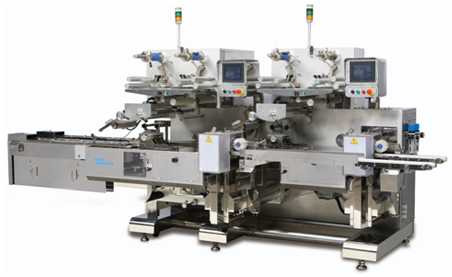

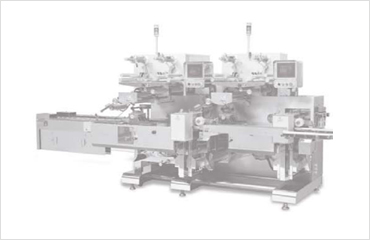

STANDARD SPECIFICATION(IW-3000T)
Operating Speed |
25~300 packs / min x2 < (Total Max. 600pack/min) |
Film Cut-off Length |
90~310mm |
Max. Film Width |
250mm |
Product Dimension |
Width 100mm |
Height 60mm |
Motor |
AC Servo motor |
Machine Dimensions |
4500x1415x1683~1780(H)mm |

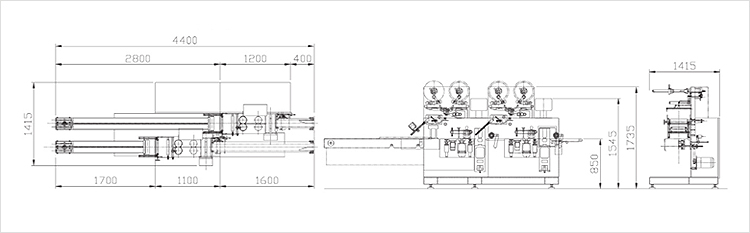

DIMENSIONAL DRAWING
