VERTICAL WRAPPING MACHINE

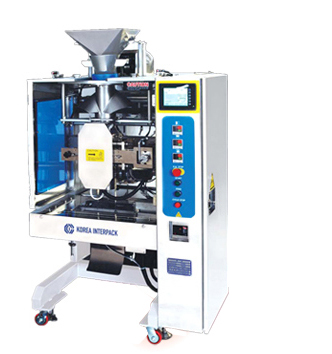

IW-770 Series
IW-700 (STANDARD TYPE)
IW-770 W (WIDE TYPE)
IW-770 U (STAINLESS STEEL TYPE)
IW-770 S (SHORT)

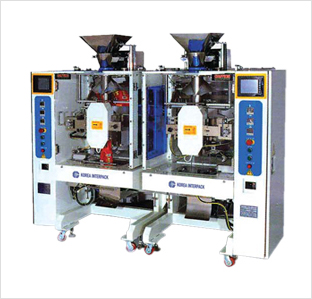

IW-770 T (TWIN TYPE)
IW-770 ES (END SEAL SERVO TYPE)
IW-770WU
IW-770T
FEATURES
  • Right or lefthand design allows for side by side operation utilizing a single feeding system
  • Smooth, accurate, high-speed operation with servomotor film drive
  • Conversation-style touch panel with the 5.7 inch color display for easy communication
  • Display monitors product count number, operating time, run efficiency and film length used
  • The computer stores the last 50 stop faults for use in trouble shooting and preventive maintenance.
STANDARD SPECIFICATION
Operating Speed Max.100 packs/min
Bag Size Width 70~230mm
Length 50~350mm
Film Roll Size Width Max.490mm
Length Max.400mm
Motor Approx. 0.53kw
Heater Approx. 2.0kw
Air Consumption Approx. 4.5Nℓ/bag
Machine Weight Approx. 600kg

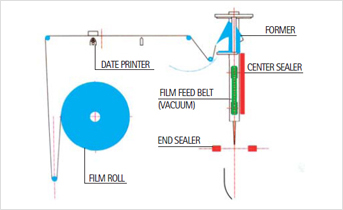

FILM ROUTING DIAGRAM
OPTION ITEMS
  • End seal cooling air jet
  • Gusset device
  • Hole punch device
  • Gas flusher
  • Date printer
  • Perforation cutter device

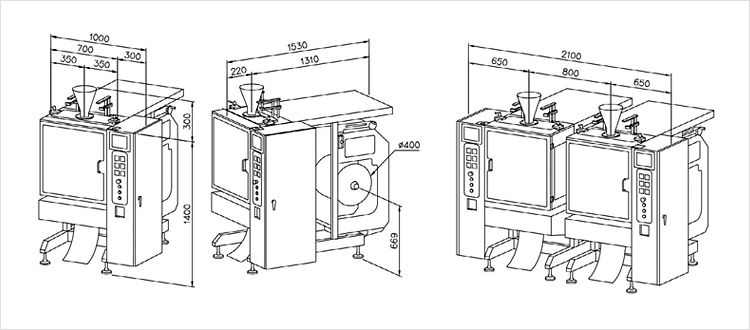

DIMENSIONAL DRAWING
IW-770 AUTO WEIGHTING & WRAPPING LINE LAYOUT (STANDARD)
IW-770 T AUTO WEIGHTING & WRAPPING LINE LAYOUT (TWIN)
