Specifications
FW3400¥á¥¶ Series

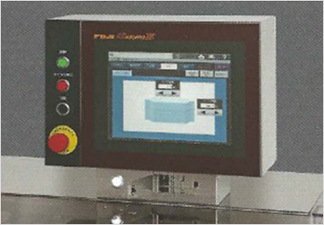

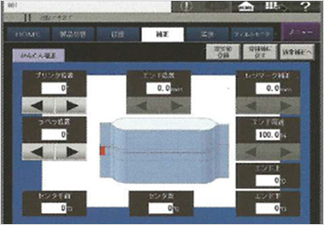

UNIVERSAL DESIGN INTERFACE

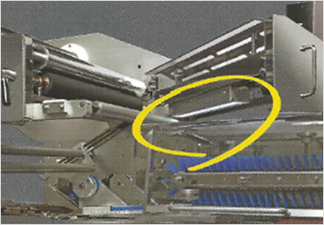

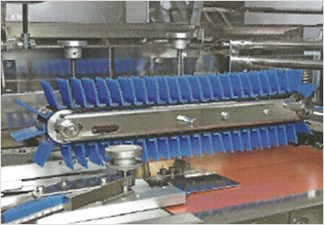

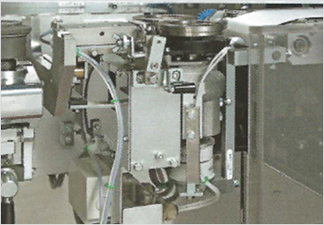

RENEWAL TRANSFER BRUSH UNIT

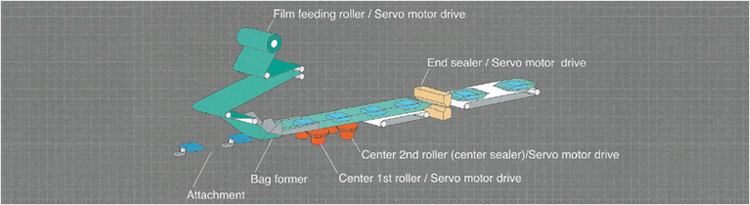

WRAPPING PROCESS
STANDARD SPECIFICATIONS
Machine Model |
FW3400/FW3700 |
FW3410/FW3710 |
Capacity |
Up to 800 packs/min |
Cut off Length |
Up to 450mm |
(Up to 3,999mm according to spec.) |
Product Size |
Width Up to 140mm |
Width Up to 200mm |
Height : Up to 100mm |
Wrapping Film |
Film Width : Up to 450mm |
Film Width : Up to 650mm |
Outside diameter : Up to 300mm |
Motor |
5AC Servo motors |
Power Consumption |
200V 3.655kW |
200V 4.155W |
(Input voltage 220-480V available with transformer) |

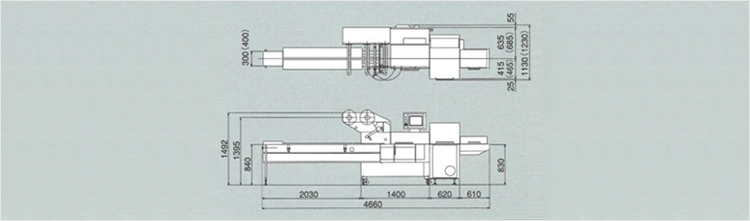

DIMENSIONAL DRAWING FW3400/FW3410
STANDARD SPECIFICATIONS
Machine Model |
FW3400B/FW3700B |
FW3410B/FW3710B |
Capacity |
Up to 250 packs/min |
Cut off Length |
Up to 430mm |
(Up to 3,999mm according to spec.) |
Product Size |
Width Up to 140mm |
Width Up to 200mm |
Height : Up to 100mm |
Wrapping Film |
Film Width : Up to 450mm |
Film Width : Up to 650mm |
Outside diameter : Up to 300mm |
Motor |
5AC Servo motors |
Power Consumption |
200V 3.685kW |
200V 4.185W |
(Input voltage 220-480V available with transformer) |

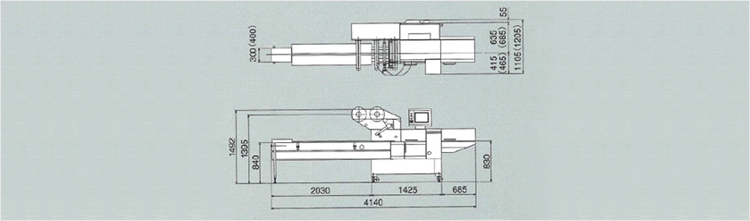

DIMENSIONAL DRAWING FW3400B/FW3410B
