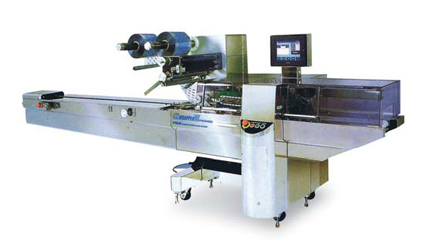

HORIZONTAL WRAPPING MACHINE / FUJI

Home PRODUCTS FUJI MACHINERY HORIZONTAL WRAPPING MACHINE
Specifications
FW3400αⅥ Series
Machine Model FW3400/FW3700 FW3410/FW3710
End Seal Diameter RD81 RD114 RD114 RD150
Capacity 10 to 300 pieces/min 10 to 300
pieces/min		 10 to 500
pieces/min
Cut Off Length 60 to 250mm 80 to 250mm 100 to 250mm 120 to 450mm
Up to 3,999mm
according to the spec		 Up to 3,999mm
according to the spec
Product Size Width:UP to 140mm Width:UP to 200mm
Height:
Up to 430mm		 Height:
Up to 60mm 		Height:
Up to 60mm		 Height:
Up to 100mm
Wrapping Film Width:UP to 430mm Width:UP to 600mm
Outside diameter:Up to 300mm Outside diameter:Up to 300mm
Motor 200V 1.835kw 200V 1.835kw
Heater 1.42kw 1.82kw 2.32kw
Machine Size 4,140(L)X1.095(W)X1,470(H) 4,140(L)X1.145(W)X1,470(H)
Weight About 850kg About 950kg
