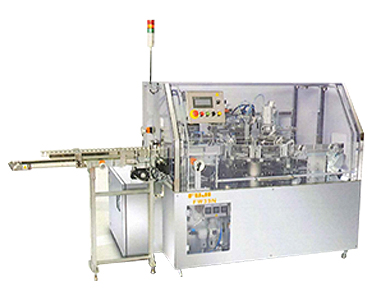

Wrapping Machine
FW39N Series
FEATURE
  • This machine can cut, seal and stick a tape automatically.

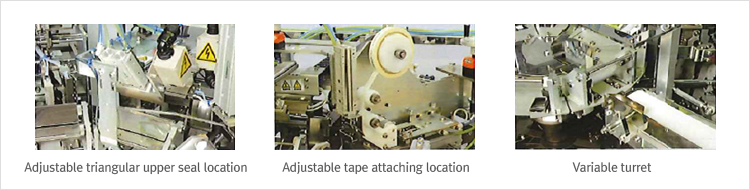

  • Enhanced variable folding unit helps machine to wrap various item.
  • This machine can stably wrap from wide item to narrow one by adjusting side feeding belt.
  • This machine can wrap a normal size sandwich to big size one by simple modification.(optional specification)

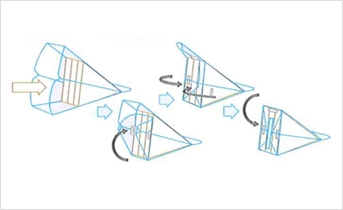

WRAPPING PROGRESS
OPTION ITEMS
  • PRODUCT DETACH FEED CONVEYOR
  • REJECT CONVEYOR
  • LABELER, PRINTER UNIT ETC.
STANDARD SPECIFICATION
Capacity 42packs/min
Product Size W : 60-100mm
L:102-110mm
H: 95-100mm
Under Sealing Method Tape attaching type width 15~24mm
Tape external diameter 130mm label
attaching type(optional specification)
Machine Weight 800kg
Power Source 3상200V / (power consumption 2kW)
Air Source 120NL/min ※Must be dry air used
Machine Size 2555X1040X1375~1870(H)

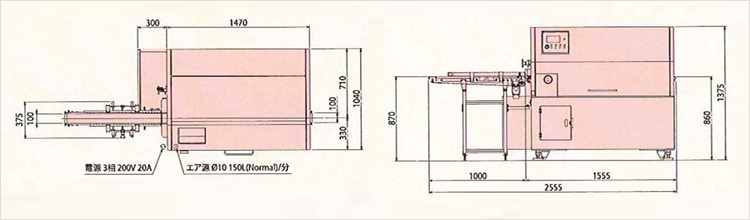

DIMENSIONAL DRAWING
