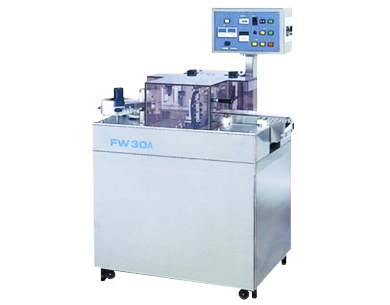

TORTE CAKE WRAPPING MACHINE
FW30A Series
FEATURE
  • This machine automatically wraps a side of a cake done by human.
  • The whole new way to heat attaching cutting method
  • Matchless V cutting method helps open the product clearly
  • This machine can wrap hygienically and various size.
  • Conveyor does not need a tool for disassemble and easy to maintain
STANDARD SPECIFICATION
Capacity 30packs/min(when cake divided into 8 torte)
Product Size W : MAX 100mm
L : 60-200mm
H : 30-70mm
Packable Product Shape - Divided torte 6 to 8, angulated one, small circular one
- transferred safely by a conveyor
- small circular one ø 60 to 100mm
- MIN. weight about 40g
Packing material - plastic(vinyl) film roll must be used side by side ( left and right 1 set)
- opp 20~30μ
- pipe internal diameter(d):76ømm
Packing Method 열용단씰 컷, 한쪽 V 컷
Machine Size 1000 (L) X600 (W) X1290 (H) mm
Machine Weight About 180kg
Power Source voltage AC200V, 10A
Option Items - EDM CO. HP-300 printer
- printing size 4m/m
- printing tape width : 25m/m
- ink color : blue, red, black, gold, silver
- tape end detector
