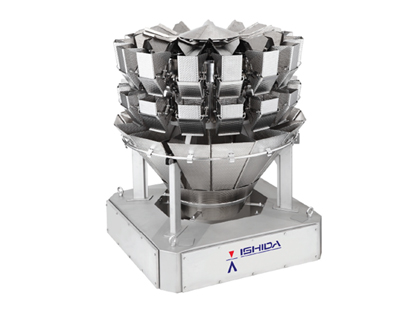

HIGH-SPEED AUTOMATIC MULTIHEAD WEIGHER
CCW-RV Series
FRATURE
  • More efficient hopper control / More faster electronics
  • Fast filtering / More effective feeder vibration
  • Tougher in the wet washable design(IP69K)
  • Quicker to wash, quicker to dry
  • Automatic set up for new products
  • Remote control offers greater flexibility(notebook, tablet pc)
  • Reductions of up to 20% in power consumption compared with recent models

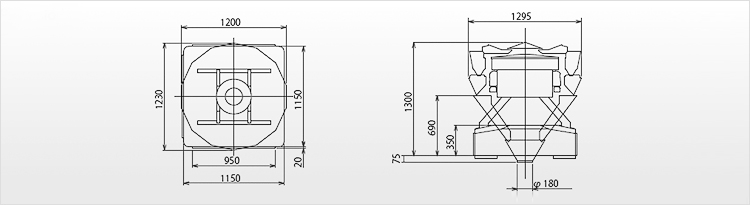

MACHINE SIZE

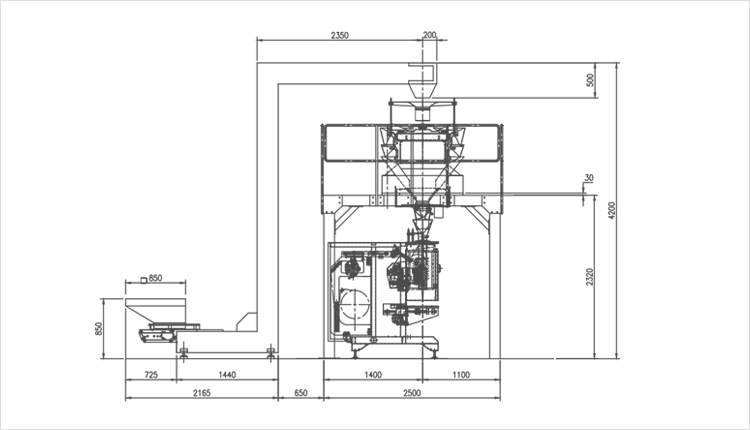

DIMENSIONAL DRAWING FOR IW-770 STANDARD

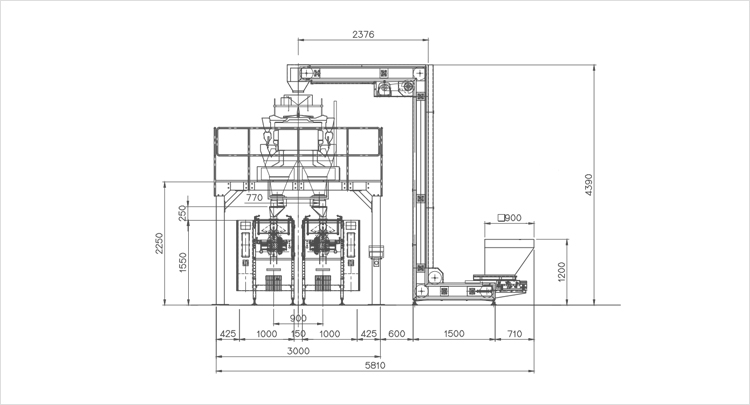

DIMENSIONAL DRAWING FOR IW-770 TWIN
STANDARD SPECIFICATION
Model CCW-RV-214W-1S/
20-SS/WP		 CCW-RV-214W-1S/
30-SS/WP		 CCW-RV-216B-2D/
20(30)-SS(WP)
Weighing Capacity
(per head)		 400g
(max)		 800g
(max)		 400g
(max)		 800g
(max)		 500g(400g/HEAD)
Max. Volume for
Weighing		 3 liters 4.5 liters 3 liters
Minimum Graduation 0.1g 0.2g 0.1g 0.2g 0.1g
Weighing Speed(Max) 210WPM* 180WPM* MAX.120 WPM × 2TH
Touch Screen
Display(RCU)		 12.1" Colour LCD Display
Weigh Cell Double-beam Loadcell
Number of Presets 200
Material Product surfaces are made of stainless steel of other sanitary materials
Structure of Body IP50(SS)/IP67,IP69K(WP) Rating
Air Consumption 110 litres/min (ANR) 0.5 Mpa Air hose - PT 3/8"
(for dryer connection) Note: Air hose compressor must
be provided by the end user
Power
Supply		 Consumption 0.5kW 0.8kW
Voltage
Current		 200-240V 50/60Hz
(External transformer will be needed for 380, 400, 415, 440, 460, 480V)
