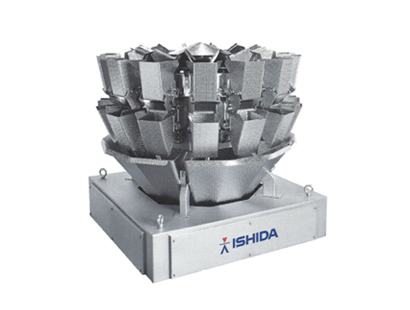

AUTOMATIC MULTIHEAD WEIGHER
CCW-RVESeries
FEATURE
  • Easy to operate
  • Data modification by plug and play USB
  • Digital filtering ensures maximum speeds even under adverse conditions.
  • Built to your request
  • Dependable operation for maximum productivity
Machine size

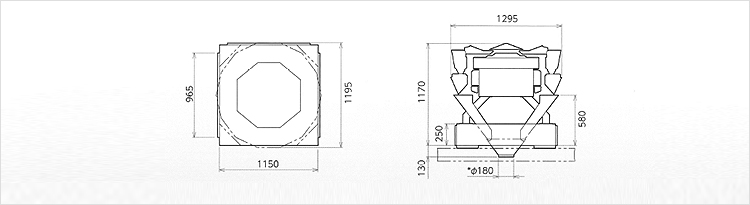

DIMENSIONAL DRAWING FOR IW-770 STANDARD
DIMENSIONAL DRAWING FOR IW-770 TWIN
STANDARD SPECIFICATION
Model RVE-210W-1S/
30(20)-PB(SS,WP) 		RVE-214W-1S/
30(20)-PB(SS,WP)		 RVE-216B-1S(2D)/
15-PB(SS,WP)
Weighing Capacity(per head) 400g
(max)		 800g
(max)		 400g
(max)		 800g
(max)		 400g
(max)		 800g
(max)
Max. Volume for Weighing 4.5(3.0) liters 4.5(3.0) liters 2.2 liters
Minimum Graduation 0.1g 0.2g 0.1g 0.2g 0.1g 0.2g
Weighing Speed(Max) 1S/20: 75(70) WPM,
1S/30: 70 (65) WPM		 1S/20: 120(110) WPM,
1S/30: 110 (100) WPM		 1S: 120WPM
WP: IP-90 WPM/side
Touch Screen Display(RCU) 10.4* Color LCD Display
Weigh Cell Double-beam Load Cell
Number of Presets 200
Structure
of Body		 Material Product surfaces are made of stainless steel or other sanitary materials
IP Test Rating PB & SS: IP-50 Rating,
WP: IP-65 Rating
Utility Air 110 liters/min (ANR) 0.01-0.02 MPA Air hose - PT 3/8"
(for air dryer connection)
Note: Air hose compressor must be provided by user.
Power Consumption 0.7kW 0.5kW 0.8kW 1.3kW
Voltage 200-240V, 380V, 400V, 415V, 440V, 460V & 480V    50/60Hz    1-phase
Weight 450kg 550kg 400kg 700kg
Noise Level Less than 80dB
