AFFORDABLE CHECKWEIGHER

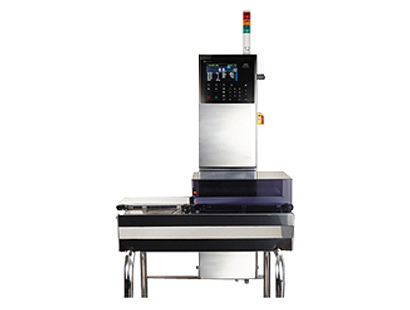

DACS-KL Series
FEATURE
  • All Stainless Body type, luxurious exterior, corrosionproof, HACCP corresponding
  • Color LCD display with user friendly interface and soft tact key switch makes control easy
  • High precision weight unit from ISHIDA
  • One touch conveyor attach and detach, USB back up function
  • Easy control with automatic timer setting

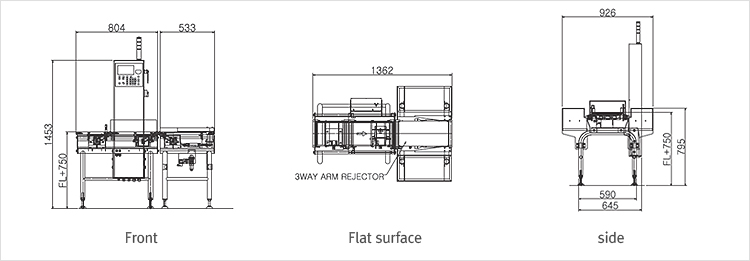

DIMENSIONAL DRAWING
STANDARD SPECIFICATION
List Content
Model DACS-KL-S012-23 / SS-I-A* DACS-KL-S012-23 / SS-I-P* DACS-KL-S012-23 / SS-I-J*
Volume 1200g
Checking Scale 10 ~ 1200g
Min. gradation 0.1g
Capacity *1 Max. 150/min, Min. 120/min Max. 200/min
Min. product
weight(3o)		 *2 0.3g ~ 0.2g ~
Product Size Length 60 ~ 300mm
Width 30 ~ 220mm 60 ~ 220mm 30 ~ 220mm
Height 10 ~ 130mm
Weight 1200g 600g
Weighter Conveyor L : 330mm X W : 220mm, L : 450mm X W : 220mm
Transfer Method Flat Belt (Urethane)
Transfer Speed 15~90mm/min(Min. gradation 1m/minute)
Weight Sensor Straing gauge-type load cell
Display, Control Unit 7" color LCD, Tact Switch
Belt height 750 +- 50 ( ) Other height is need to make inquiry
Material Stainless
Operation
Temperature * 3		 (Humidity 30~85% no dew condensation)
Power Single phase AC 220V
Machine Weigh About 80kg About 75kg
Noise 70oB (A) Under
Noise USB port *4
Noise 3way Arm, Drap, Pusher, Air Rejector
  • Filled out content is maximum value. The detail value is may be different by the environment.
  • Product size, conditions are may be different by the environment.
  • To maintain the degree of the precision keep the room temperature
  • Only USB device that our company build can access the machine. Please purchase corresponding one.
    ( Optional printer and data write. )
