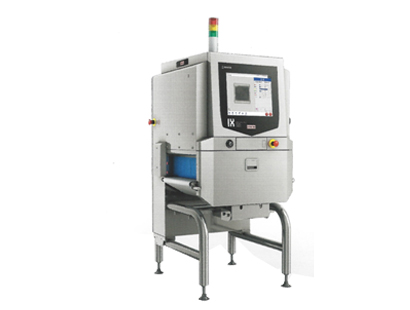

HIGH SENSITIVITY X-RAY DETECTOR
IX-GE Series
IX-GN-2444
IX-EN-4044
FEATURE
  • Suitable for hard contaminant due to strong and tough
    material

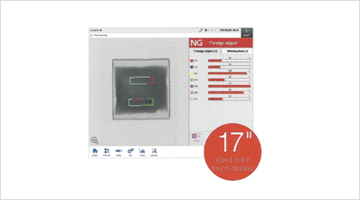

  • ISHIDA patented Genetic Algorithm image processing
    superior inspection accuracy.

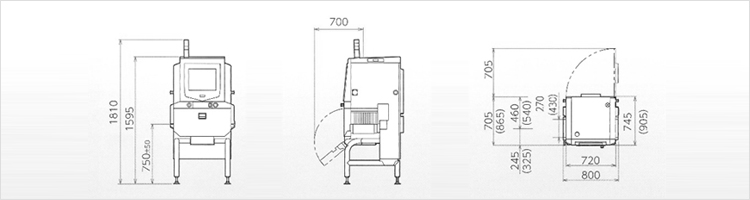

DIMENSIONAL DRAWING
STANDARD SPECIFICATION
List IX-GN_2444 IX-EN-4044
Tunnel Aperture Width 240mm 400mm
height 150mm
Construction Material Stainless Steel 304 w/Blasting surface
IP Rate Conveyor chamber: IP66 Enclosure: IP54 (IP65, option)
Conveyor Dimension 800mm(L)x270mm(W) 800mm(L)x430mm(W)
Conveyor Speed 10-60m/min
Load Weight 5kg
Product Length 20 ~ 450mm
Minimum spacing
between products		 30mm
Power Supply Single phase: AC200-240V 50/60Hz 1150W
X-RAY Tube Voltage 25-75kV
Tube Current 1-8mA
Output Max: 300W
X-RAY Emissions 1micro Sv/h or less
Machine Weight 285kg 315kg
Working
Environment		 Temperature 0-33°C
Humidity 30-85%RH
